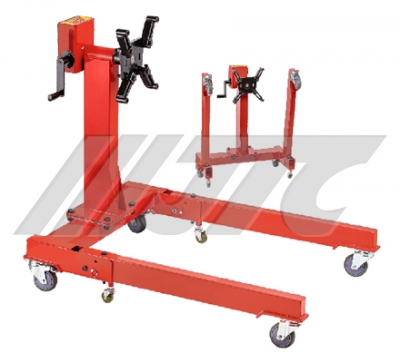

- The same function as ES-707.
- Extension of the swivel fixing base is longer for easier to repairing the engines.
- Two heavy duty base legs for loading heavy engine.
- The metal drain pan ES809P is available for option.
- Capacity: 650 kgs.
- Optional: Extended legs -25cm.
|
ITEM |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
|
ES450 |
380 |
710 |
635 |
878 |
1050 |
|
ES707 |
373 |
960 |
820 |
1173 |
1069 |
|
ES808 |
665 |
900 |
781 |
1249 |
1040 |
|
ES909 |
342 |
1065 |
891 |
MINI 953 MAX 1361 |
1069 |
|
ES809 |
860 |
860 |
690 |
1250 |
1005 |
